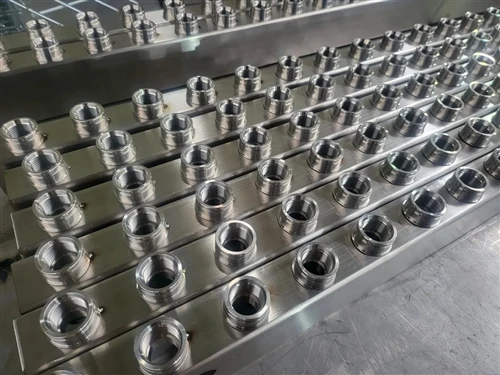

How To Eliminate Leakage Risks in Customized Liquid Cooling Manifold Systems
As AI server cabinets hit 30–50kW and GPU power exceeds 700W, Server Liquid Cooling Manifold has become the "flow hub" between CDU and cold plates. One micro-leak can short a whole rack. For buyers in South Africa, India, Brazil, the US, and Southeast Asia, the real question is not "which manifold looks good" - it is "how to stop leaks before they start."
Where Manifold Leaks Actually Come From
In our global project reviews at China Super Tech Co., Ltd., three root causes dominate:
Weld & joint defects – multi-point welded manifolds leave micro-voids; under 1.2MPa cyclic pressure they grow into delayed leaks.
Material mismatch – 304 in chloride-rich coolant (coastal India, Brazil, SEA) gets pitting; carbon steel fittings cause galvanic corrosion.
Seal & groove tolerance – O-ring grooves >Ra0.8μm or wrong compression ratio fail under -40~85℃ thermal cycles.
A Mumbai colocation customer used imported aluminum manifolds with 304 adapters - chloride coolant caused pitting at month 4, 3 racks down. We replaced with China Super Tech 316L ultra-low-carbon stainless (2-3% Mo, 3-5× corrosion resistance) smooth tubes + CNC-machined 316 manifold, 100% helium leak-tested to 10⁻⁸ Pa·m³/s. Zero leaks after 14 months.
A São Paulo fintech ran 40kW AI cabinets with custom U-bend manifolds from a local shop - weld virtual-welding caused slow weep at flange. We delivered 316L U-bend + square manifold, TIG orbital weld, passivated per ASTM A967. Installed in 72h from our stock.
A Johannesburg hyperscaler needed 200 racks of D2C manifolds with mixed 316L (primary) and 304 (pure-DI-water secondary). Our large ready stock + full-spec inventory shipped standard DN15/DN20 within 5 days; custom square manifolds in 15 days. A Dallas GPU cluster used our electro-polished 316L for cleanroom CDU - no particulate shedding, no seal degradation.
How China Super Tech Eliminates Leak Risks
We are a Beijing-based 11-year stainless liquid-cooling specialist serving US, EU, SEA, LATAM and Africa:
Material: China Super Tech 316L (Mo-added, ultra-low C) for glycol/coolant; China Super Tech 304/304L for pure DI water - cost-effective, long-term stable.
Product range: Smooth Condenser Tube (Straight / U-bend / Liquid Cooling Pipe / Manifold), Finned (Wound / HF-Welded / Rolled), Special-shaped (Spiral / Corrugated / Threaded). Full sizes DN6–DN50, wall 0.5–2mm.
Process: European precision line, TIG/orbital weld, Ra≤0.8μm groove, 100% helium + 1.5× pressure test, ISO9001/14001/45001/3834, CE/RoHS/EU food-grade.
Service: Large inventory, standard products fast dispatch; full customization for Server Liquid Cooling Manifold, CDU, cold plate, immersion; one-stop from R&D to after-sales, 24h response.
Applications: AI data center D2C/immersion, energy storage liquid cooling, medical, F&B, new-energy - one supplier for all.
FAQ
Q1: Our US client once asked - "Can I use 304 instead of 316L to cut cost in my Texas AI lab?"
Yes, if coolant is pure/deionized water with no chloride - CST 304 gives great value. But for ethylene/propylene glycol or coastal/high-humidity sites (Mumbai, Singapore, Durban), 316L is mandatory. We help you balance budget vs. lifecycle - no over-spec, no under-protect.
Q2: An Indian distributor hit "manifold weeps after 6 months" - how to avoid?
Usually seal-groove roughness or non-passivated weld. We supply electropolished 316L + passivation + helium test, and provide spare O-rings (EPDM/FKM). For custom manifolds, we share CFD flow + groove drawings before production so you verify before paying.
📩 sales@316liquidcooling.com | 📞 +86 15900357871 | 🌐 https://www.316liquidcooling.com/
Standard stock ships in 3–5 days · Custom manifold in 15 days · Global DDP available
