Special-Shaped Condenser Tubes for Custom Heat Exchangers & Liquid Cooling Systems
China Super Tech Co., Ltd. (CST) manufactures precision-profiled stainless steel and alloy tubing solutions engineered for advanced industrial heat exchangers, HVAC&R systems, and high-density data center liquid cooling infrastructure. Operating from advanced manufacturing facilities in China, CST delivers high-integrity special-shaped tube components to global equipment manufacturers, mechanical engineering firms, and system integrators.
Special-shaped condenser tubes are non-circular profile metal tubes developed for applications where standard smooth or finned tubes cannot meet strict space or thermal performance targets. By altering the internal or external flow path through controlled mechanical deformation, these tubes increase fluid mixing and heat rejection rates per unit volume, reducing the overall footprint of heat exchangers and cooling systems.
Product Types

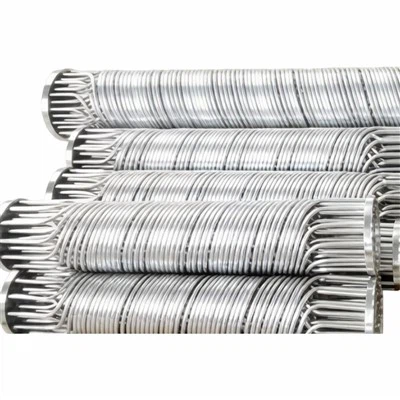

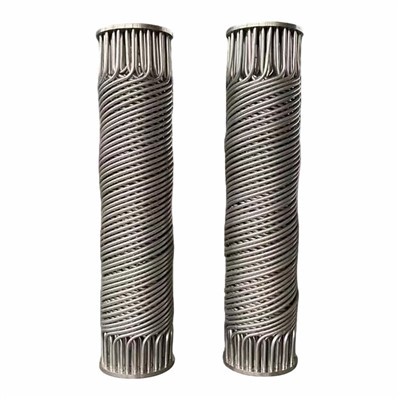

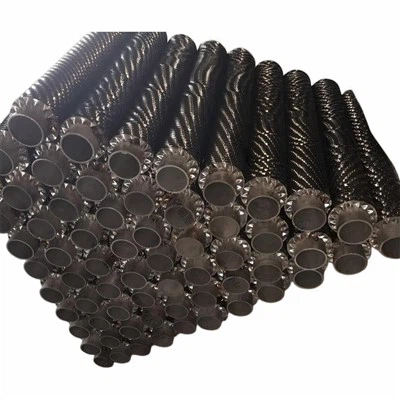

Spirally Wound Stainless Steel Tubes
Continuous helical ridges formed along the tube length, creating swirling fluid motion.

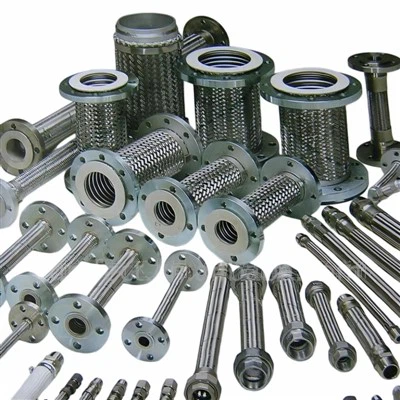

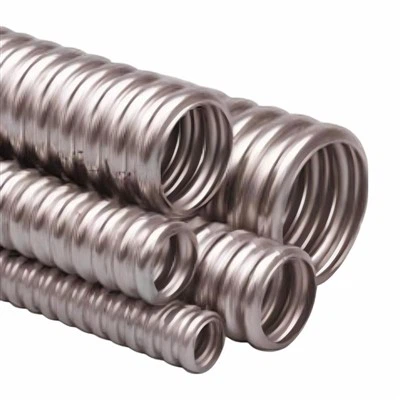

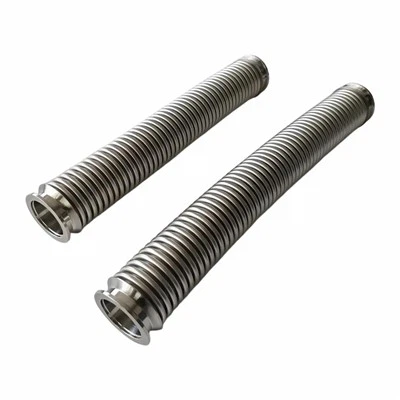

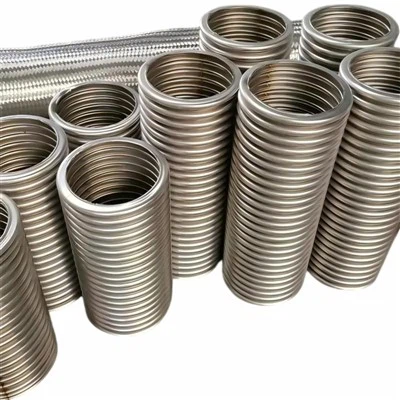

Corrugated Stainless Steel Tubes
Periodic circumferential or multi-start convolutions providing flexible thermal expansion and fluid disruption.

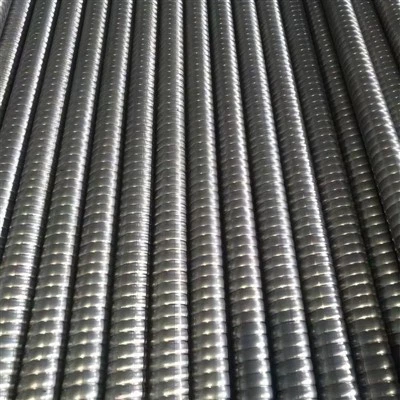

Threaded / Fluted Condenser Tubes
Internal or external longitudinal grooves designed to promote condensate drainage and film-wise condensation breakdown.
Technical Specifications
| Parameter | Metric Range / Standard |
| Profile Types | Spirally Wound, Corrugated, Longitudinal Fluted, Multi-lobe |
| Outer Diameter (OD) | 8.0 mm - 50.8 mm (profile envelope dependent) |
| Wall Thickness (WT) | 0.6 mm - 2.5 mm |
| Manufacturing Standards | ASTM A249 / ASTM A269 / EN 10217-7 |
| Dimensional Tolerance | Pitch: plus or minus 0.2 mm |
| Max Length | Up to 8,000 mm (profile dependent) |
Materials & Surface Finish
Material Grades:
AISI 304 / 304L (Standard grade for water and glycol thermal loops)
AISI 316 / 316L (Molybdenum-bearing grade for high chloride and chemical resistance)
Titanium Grade 2 / Nickel Alloys (For severe marine or aggressive acid environments)
Surface Condition:
Bright-annealed (heat-treated in a protective atmosphere to eliminate oxidation scales)
Passivated (chemically cleaned to remove free iron particles and maximize corrosion resistance)
As-formed or mechanically polished internal paths.
Performance Features
Turbulence Enhancement:
Non-uniform internal contours force fluid transition from laminar to turbulent flow at lower Reynolds numbers.
Fouling Mitigation:
Continuous fluid scrubbing action along profiled walls reduces scale and particulate accumulation.
Heat Transfer Augmentation:
Increases inner and outer surface area and fluid mixing, improving overall heat transfer coefficients by 30 to 50 percent over smooth tubes.
Pressure Management:
Optimized geometric profiles balance heat transfer gains against acceptable pressure drop penalties.
HVAC&R Equipment: Shell-and-tube condensers and evaporators in commercial water chillers.

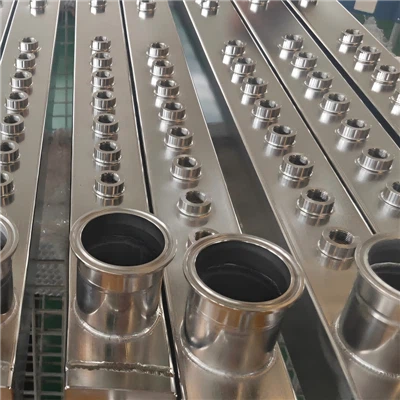

Data Center Thermal Management: High-density CDU fluid circuits and localized heat rejection modules.
Chemical Processing: Compact heat exchangers handling viscous fluids or corrosive process streams.
Selection Criteria:
Choose spirally wound profiles for maximum shell-side fluid mixing.
Choose corrugated profiles to absorb thermal expansion stresses in rigid tube bundles.
Choose internal fluted profiles for enhanced condensation performance on refrigerant sides.
Production Process: Precision tube blank insertion -> Synchronized multi-axis roll profiling or hydraulic forming -> Inline dimension scanning -> Solution annealing -> Non-destructive testing.
Testing & Inspection Equipment:
Eddy Current Testing: Continuous inline electromagnetic testing scanning for micro-defects along profile contours.
Optical Profile Projectors: High-magnification optical measurement verifying pitch, depth, and wall thickness symmetry.
Hydrostatic Pressure Testing: Proof testing conducted per lot specification to verify burst strength.
Traceability: Full Material Test Reports supplied per EN 10204 3.1, documenting melt chemistry, mechanical properties, and test verifications.
Custom Tube Manufacturing
Custom Tooling Development:
Custom roll dies built to client CAD specifications for proprietary profile geometries.
01
Cut-to-Length & Deburring:
Automated cutting and clean-edge deburring ensuring precise fit into tube sheets.
02
End Preparation:
Plain square cuts, special chamfers, or expanded ends prepared for mechanical rolling or automated orbital welding.
03
Packaging:
Wooden crating with individual tube separation slots and sealed plastic ends to protect profile structures during transit.
04
Certifications
FAQ
As one of the most professional special-shaped condenser tube manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale OEM special-shaped condenser tube from our factory. Also, custom service is available.
