Why Is 316L Stainless Steel Pipe The Preferred Choice For Corrosion Resistance?

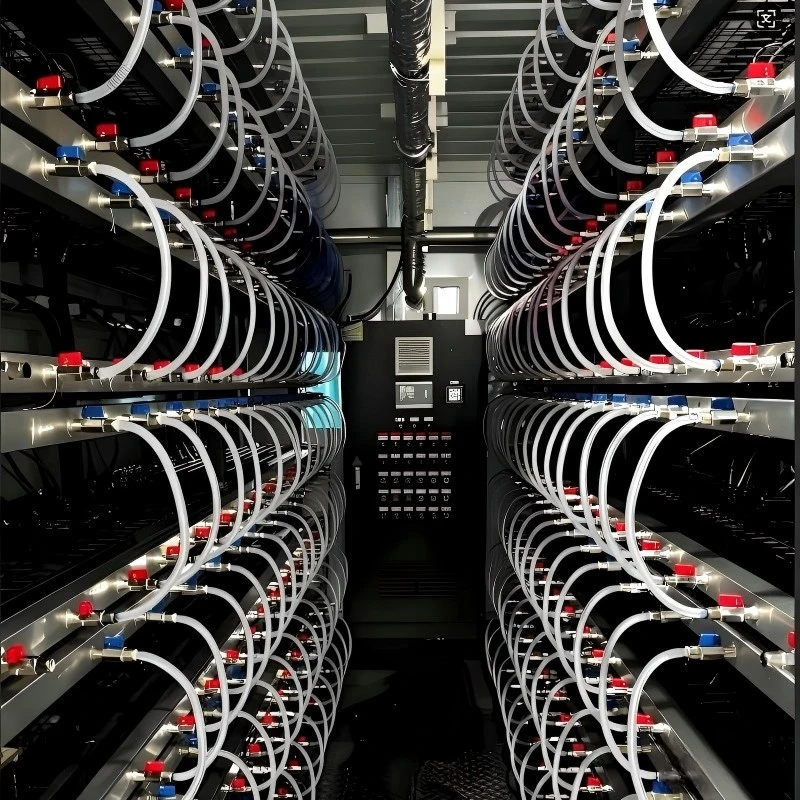

In the context of the accelerated deployment of liquid cooling systems in global data centers, the problem of pipeline corrosion caused by the long-term circulation of cooling fluids has become increasingly prominent, becoming a core issue affecting the reliability and operational safety of the systems. As the power of individual cabinets continues to increase, liquid cooling systems not only need to meet the demand for efficient heat dissipation but also must address material challenges in complex chemical environments. The current mainstream cooling fluids include deionized water, water glycol solutions, and various special cooling fluids. These media may all cause varying degrees of corrosion to the pipelines during long-term operation.
In particular, deionized water, although initially has an extremely low conductivity, during operation, it may introduce trace amounts of chloride ions due to water replenishment or environmental factors. These ions will accumulate on the inner walls of the pipelines, causing pitting corrosion and even perforation; while water glycol solutions, under high-temperature and high-pressure conditions, their oxidation products have a certain acidity, which will also accelerate the corrosion of weld seams and heat-affected zones. Actual cases have shown that a North American data center that used 304 stainless steel pipes to transport deionized water only experienced internal wall pitting corrosion after 18 months of operation, resulting in cooling fluid leakage and partial cabinet shutdown. After testing, chlorine ions were enriched in the weld area, with a local corrosion rate as high as 0.15mm/year. Another European customer, when using water glycol cooling fluid, also suffered a severe leakage accident due to stress corrosion cracking of the 304 pipeline welds, with downtime exceeding 12 hours and causing direct economic losses of several hundred thousand US dollars.

In such an application environment, the advantages of 316L stainless steel pipes are particularly prominent. Compared with 304, 316L contains an additional 2% - 3% of molybdenum, which not only enhances the density of the passivation film but also significantly improves its tolerance to chloride ions and acidic media. Experimental data shows that in deionized water containing 50 ppm of chloride ions, the annual corrosion rate of 304 can reach 0.08mm, while that of 316L is only 0.02mm; in water glycol solution, the pitting potential of 316L is approximately 200mV higher than that of 304, effectively inhibiting the occurrence of local corrosion. For data center operators, this difference in material means longer pipe lifespan, lower maintenance frequency, and higher system stability. Especially in scenarios with high power density and long-term operation, the comprehensive cost performance of 316L is much higher than that of 304.

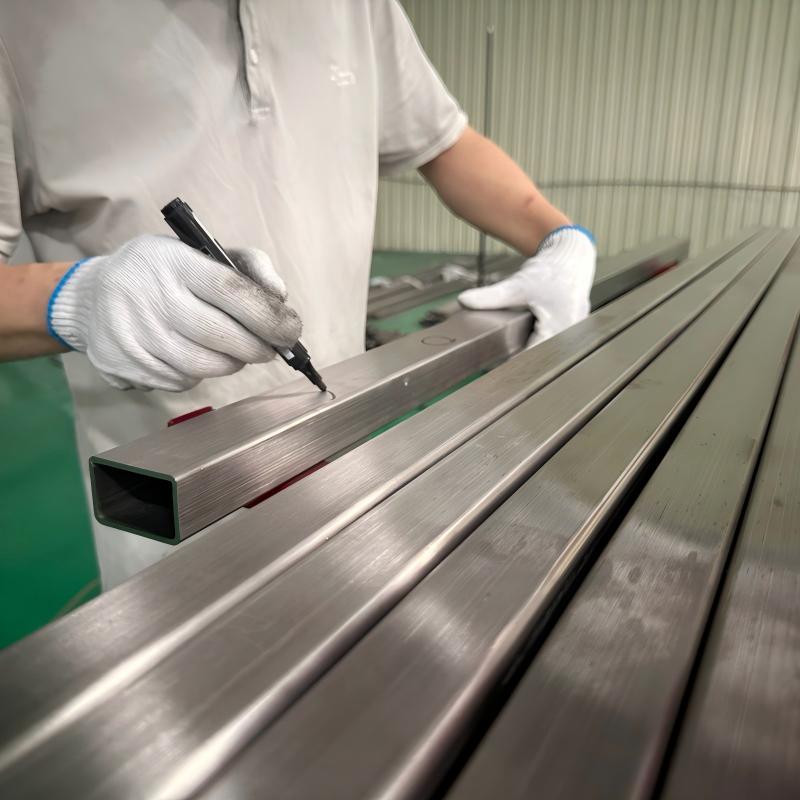

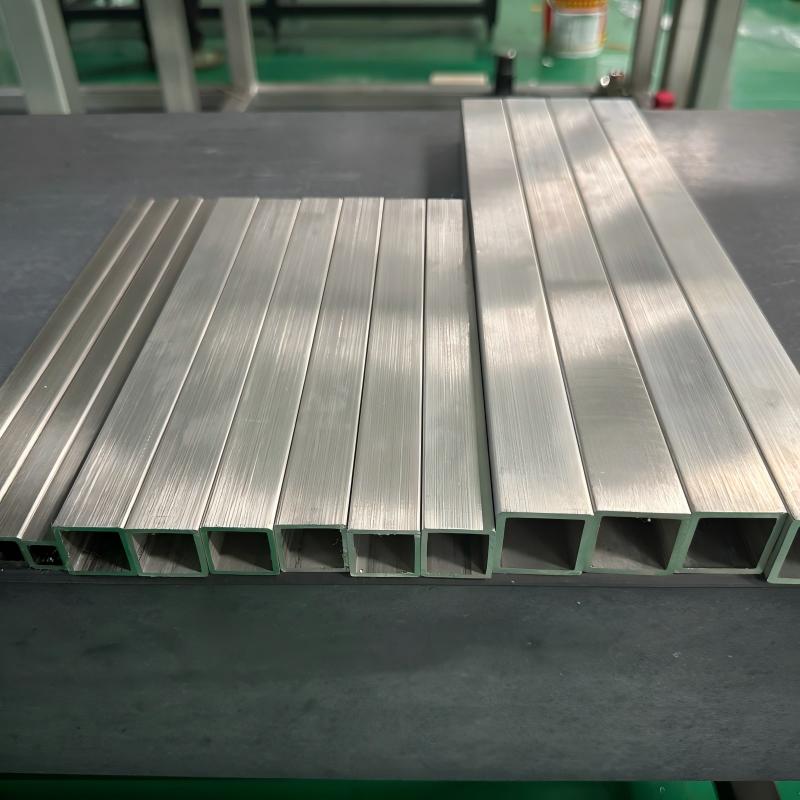

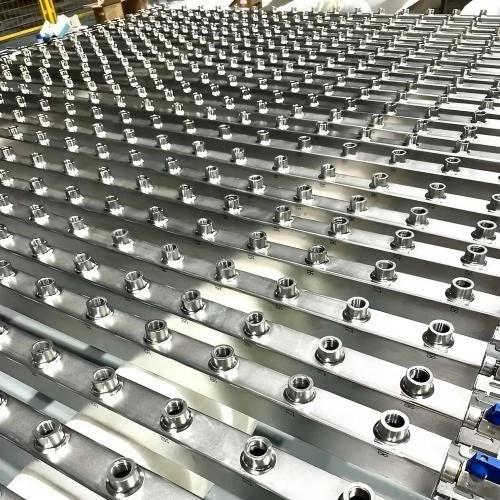

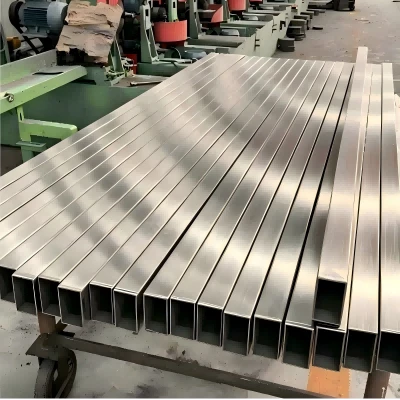

China Super Tech Co., Ltd. specializes in the research and production of stainless steel liquid cooling pipes. To meet the high reliability requirements of the data center industry, we have launched a full range of solutions covering 316L and 304 materials. We maintain an inventory of over 500 tons, with specifications ranging from outer diameter Φ12mm to Φ219mm and wall thicknesses from 0.5mm to 5mm. This enables us to meet the construction needs of different-sized data centers. Standard products can be dispatched to all parts of the world within the shortest 72 hours after order confirmation, ensuring that project progress is not affected. Additionally, we offer flexible customized services, including non-standard size processing, special section design, electrolytic polishing treatment (surface roughness Ra ≤ 0.8μm), and weld radiographic testing, to ensure the performance of the products under complex conditions. Our production line is equipped with automated welding and precision inspection equipment to ensure that the size accuracy and weld quality of each pipe meet international standards.

Our products have passed the ISO 9001 quality management system certification and comply with industry standards such as ASTM A269/A270. All materials can be traced back to the original steel mill coils, ensuring the stability of composition and performance. In actual projects, we provided 316L liquid cooling pipes for a supercomputing center in Southeast Asia. The system operated continuously for three years without any corrosion or leakage. We also customized anti-water ethylene glycol corrosion pipes for a large cloud service provider in Europe and passed the 1000-hour salt spray test, earning high recognition from the customers. With a comprehensive one-stop service system, we not only provide products to customers but also participate in the early selection consultation and working condition analysis, helping customers formulate the optimal material and application plans based on the type of cooling fluid, temperature and pressure parameters, and budget. This full-process technical support enables us to avoid potential corrosion risks in the early stage of the project and reduce the maintenance costs in the later stage.

For many customers, a common question is whether the cost difference between 316L stainless steel pipes and 304 is worth the investment. From the perspective of material prices, the raw material cost of 316L is approximately 20%-30% higher. However, in the entire lifecycle, its service life is usually 3-5 times that of 304, which can reduce maintenance and downtime costs by more than 60%. Taking a 10-kilometer pipeline project as an example, although the initial investment is higher, considering maintenance, downtime losses, and risk costs, the overall cost of 316L is actually lower than that of 304. Another frequent question is how to determine whether existing pipes need to be replaced with 316L. Generally, upgrading is recommended under the following circumstances: if the chloride ion content in the coolant exceeds 10 ppm, if pitting or weld leakage occurs within two years of operation, or if the plan is to increase the power of a single cabinet to above 30kW, because higher heat dissipation requirements will accelerate the chemical activity of the coolant, thereby increasing the risk of corrosion.
