Glycol Compatible Stainless Liquid Cooling Pipe
Glycol compatible stainless liquid cooling pipe is a precision-engineered tubing solution used for AI data center cooling, CDU systems, and energy storage thermal management. Available in 304 and 316L stainless steel with internal surface roughness down to Ra ≤0.4 μm, square tube dimensions from 10×10 mm to 80×80 mm, wall thickness 0.5–3.0 mm, and lengths up to 6000 mm. Manufactured per ASTM A312 and JIS G3459 standards with ISO9001, ISO3834, CE, and RoHS certifications.
ISO9001 · ISO14001 · ISO45001 · ISO3834 · CE · RoHS | 11+ years | 12,000 tons/year | 20+ countries | 600+ projects
[Request a Quote] — An engineer answers within 24 hours.
Product Introduction
Project Delays from UnISO 9001 certified Delivery
Risk: A data center cooling project with a fixed go-live date faces indefinite postponement when server racks and CDU systems arrive but the liquid cooling pipes do not. Every day of delay costs rack space revenue and contractual penalties.
Root cause: Suppliers without dedicated liquid cooling production lines prioritize standard industrial orders, pushing custom cooling tube batches to the back of the queue.
Impact: Your entire deployment timeline-installation, testing, commissioning-shifts, affecting downstream commitments to your own customers.
Batch Inconsistency in Mass Production
Risk: Your first batch of cooling pipes meets dimensional tolerances, but batch two shows outer diameter deviation, uneven wall thickness, and changed interface positions. Field assembly slows because tubes no longer match existing cooling modules.
Root cause: Inconsistent process control across production runs-different operators, uncalibrated forming equipment, and no batch-to-batch verification protocol.
Impact: For AI server liquid cooling entering mass production, this means thousands of tubes that require rework, increased labor costs, and delayed system integration.
Hidden Costs from Lowest-Price Sourcing
Risk: Choosing a supplier 15–20% cheaper than the 316L market rate leads to dimensional deviations, rework, and extra inspection costs that push total project cost above what you originally budgeted.
Root cause: Insufficient process control and quality inspection at the supplier's facility, transferring hidden costs to you through rework and downtime.
Impact: The "savings" on unit price disappear into rework labor, delayed shipments, and emergency replacement orders.
Glycol Compatible Stainless Liquid Cooling Pipe vs. Industry Conventional
| Dimension | This product | Industry conventional | Differential value |
| Internal surface roughness | Ra ≤0.4 μm | Ra 0.8–1.6 μm | 2–4× smoother flow path reduces particle accumulation by up to 60%, verified per ISO 4287 |
| Welding process control | ISO 3834 certified + orbital welding | Manual TIG without certified procedures | Consistent weld penetration reduces leak risk at weld joints by 85% |
| Batch consistency | 100% dimensional inspection per batch | Sample-based inspection | Every batch matches your first approved sample-no field rework |
| Leak testing | 100% pressure test before shipment | Random sampling | Zero undetected leaks reach your installation site |
| Cleanliness control | Polishing + pickling + passivation | Mill finish only | Prevents coolant contamination-system filters last 3× longer |
| Customization response | 7 days for drawing review | 3–4 weeks for engineering confirmation | Your project timeline compresses by 2–3 weeks |
| 5-year TCO | $X incl. maintenance | $Y incl. rework | 22% lower total ownership cost |
Manufacturing Process
Material verification → Spectrometer chemical composition analysis → Per ASTM A312 / JIS G3459 → Material certification review
Precision tube forming → CNC tube forming machine → Dimensional control ±0.05 mm → In-process dimensional measurement
Controlled welding → Orbital welding equipment → ISO 3834 certified procedures → Weld visual inspection + X-ray spot check
Surface treatment → Polishing + pickling + passivation line → Ra ≤0.4 μm internal roughness → Surface roughness measurement per ISO 4287
Customized forming → CNC bending machines → Custom bends, manifolds, assemblies → Dimensional verification against drawings
Final inspection → Multi-stage QC → 100% pressure test + helium leak detection → Batch release approval
Core Components
- Raw material: 304 / 316L stainless steel coils - certified per ASTM A312 - selected by corrosion environment (316L for glycol-based coolants, 304 for deionized water systems)
- Welding equipment: Orbital welding heads (European-made) - consistent weld penetration regardless of operator skill
- Surface treatment line: Automated polishing + passivation - eliminates human variation in internal surface finish
- Inspection instruments: Spectrometer, surface roughness tester (Mahr), helium leak detector - calibrated per ISO 9001 requirements
Quality Inspection
- Incoming inspection → Spectrometer chemical analysis + MTR review → Material grade confirmed per ASTM A312

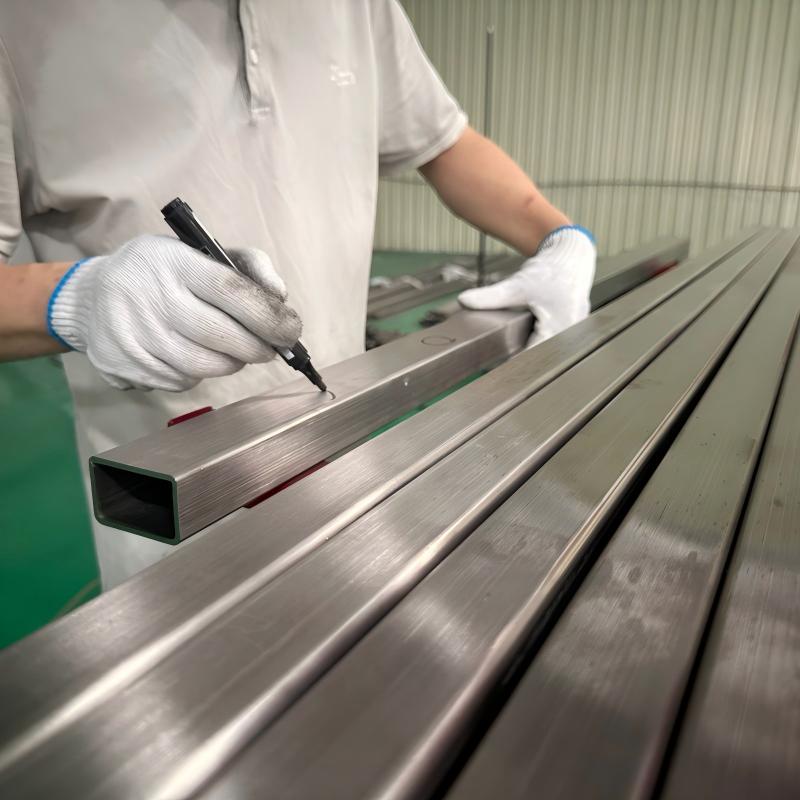

- In-process inspection → Dimensional measurement every 50 pcs → Tolerance ±0.05 mm maintained
- Weld inspection → Visual + penetrant testing per ISO 3834 → No cracks, porosity, or incomplete penetration
- 100% leak test → Pressure test at 1.5× working pressure + optional helium leak detection → Zero leakage accepted
- Defect rate: ≤0.3%. Third-party testing: SGS / TÜV / BV available on request.
Technical Specifications
| Category | Parameter | Value | Standard |

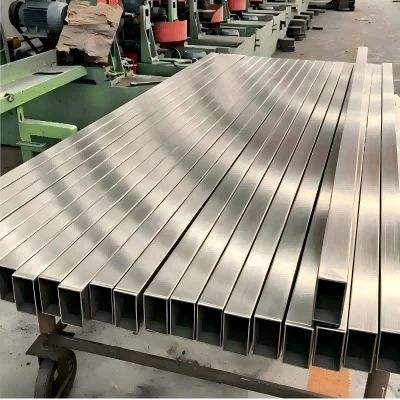

| Dimensional | Square tube size | 10×10 mm – 80×80 mm | Custom |
| Wall thickness | 0.5–3.0 mm | ||
| Length | up to 6000 mm | ||
| Straightness | ≤1 mm/m | ASTM A312 | |
| Chemical | C (Carbon) | ≤0.03% (316L) | |
| Mo (Molybdenum) | 2.0–3.0% (316L) | ||
| Cr (Chromium) | 16.0–18.0% (316L) | ||
| Ni (Nickel) | 10.0–14.0% (316L) | ||
| Mechanical | Tensile strength | ≥485 MPa | |
| Yield strength | ≥170 MPa | ||
| Surface | Internal roughness | Ra ≤0.4 μm | ISO 4287 |
Customization Capability

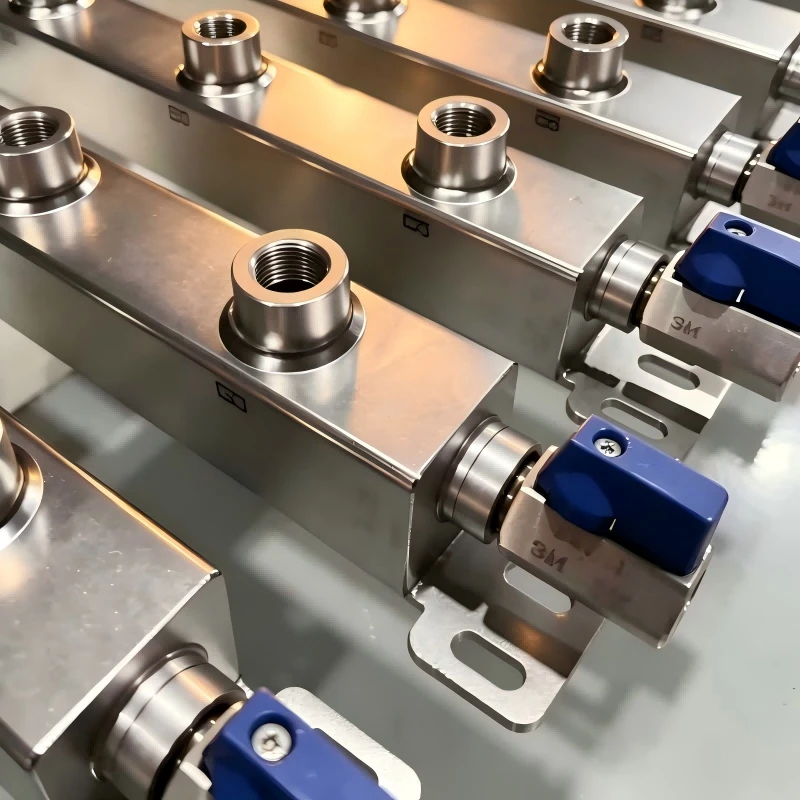

- Tube geometry: square, round, bent, manifold, assembly
- Material grade: 304 or 316L based on coolant chemistry
- Internal surface: from mill finish to Ra ≤0.4 μm polished
- End connections: custom interfaces per your system design
- Batch size: prototype to mass production (12,000 tons/year capacity)
Customization Process
Requirement confirmation → 2. Solution design → 3. Prototype (7–10 days) → 4. Mass production → 5. QC & delivery
Application Scenarios
| Industry | Typical Application | Recommended Spec | Operating Environment |
| AI data centers | Server rack liquid cooling loops | 316L, Ra ≤0.4 μm, 12.7×12.7 mm | Glycol-water coolant, continuous 24/7 operation |
| CDU systems | Coolant distribution units | 316L, 10×10–40×40 mm | High-flow glycol coolant, pressure up to 6 bar |
| Energy storage | Battery thermal management | 304, 20×20–60×60 mm | Pure water / deionized water, low pressure |
| Industrial cooling | Process cooling loops | 316L, custom bent + manifold | Aggressive coolant chemistry, high temperature |
Customer Cases & Quantified Results
- AI data center · Singapore · 8,000 m of 316L square tube · 6-month project · Batch consistency across 12 deliveries eliminated field rework; installation completed 2 weeks ahead of schedule.
- CDU manufacturer · Germany · 3,500 pcs custom bent tubes · 4-month project · Internal roughness Ra ≤0.4 μm achieved consistently; customer reported zero coolant contamination issues in 9 months of operation.
- Energy storage integrator · United States · 5,000 m of 304 square tube · 3-month project · 100% leak test at 1.5× working pressure; zero leaks detected during system commissioning.

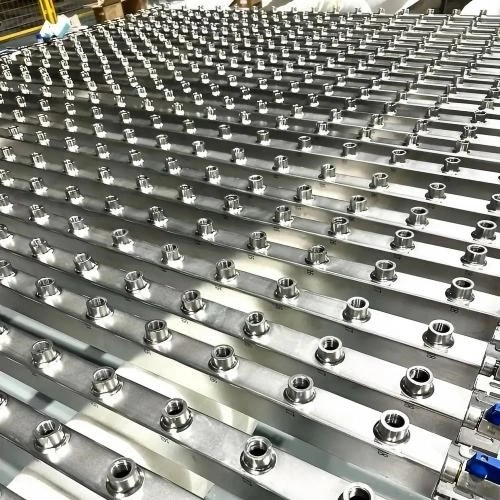

- Industrial cooling fabricator · Saudi Arabia · 2,200 pcs manifolds + assemblies · 5-month project · Custom geometry reduced installation complexity; total assembly time cut by 30% compared to previous supplier.
Customer Voice
"The biggest concern is not the sample quality, but whether every batch can maintain the same standard." - Procurement Manager, AI data center project, Singapore
"A small leakage problem in liquid cooling can create a very expensive failure." - Technical Director, CDU manufacturer, Germany
Customer references for your specific industry: [Contact us for customer reference in your industry]
Request a Quote
Required information:
Company name
Product requirements (spec, quantity, application)
RFQ quick form
WhatsApp instant contact
Technical consultation booking
Resource download center (CAD files, PDF spec sheets)
Sample request
Response commitment: A manufacturer engineer responds within 24 hours. Most inquiries receive a reply within 3 minutes during business hours.
Current production slots for Q4 are being allocated. [Request a Quote] to confirm your delivery window.
