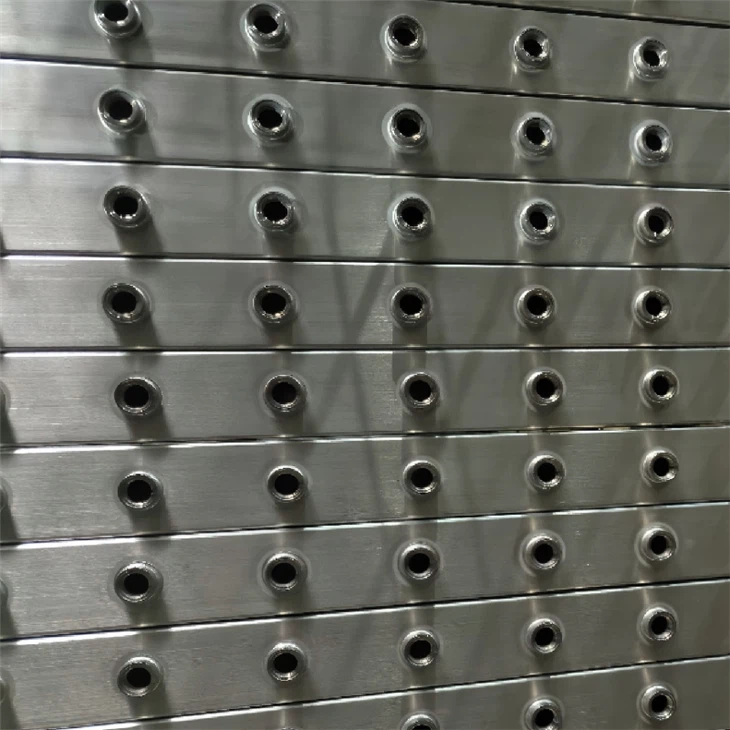

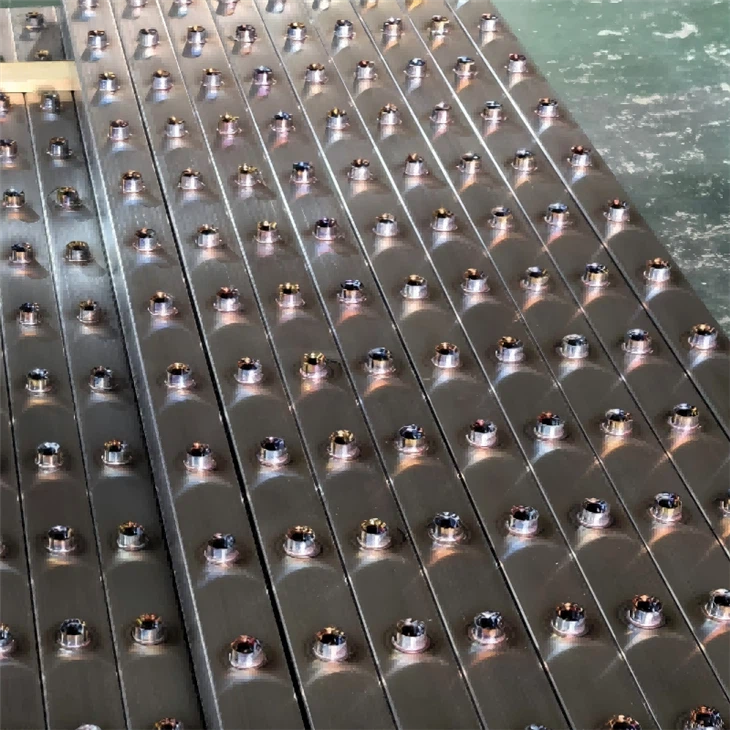

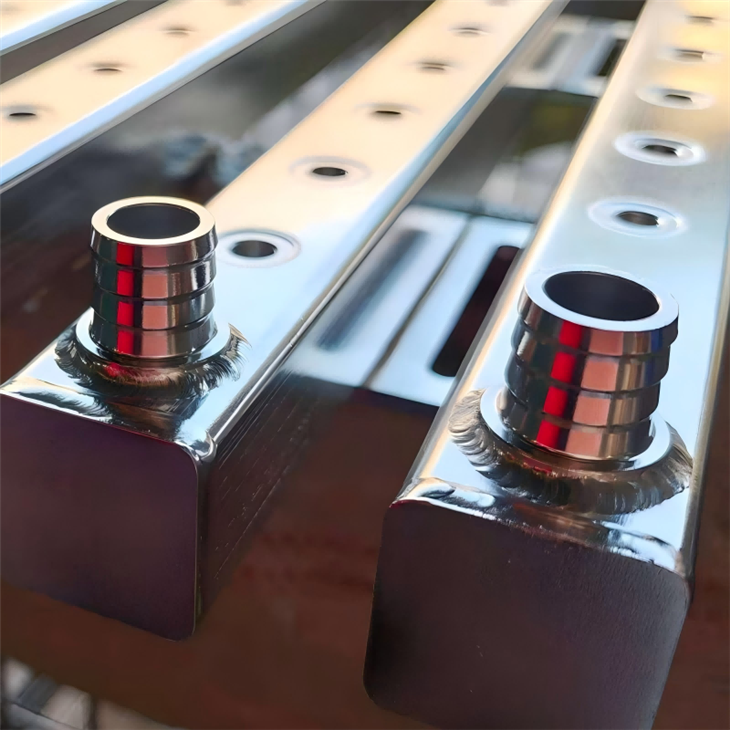

Stainless Steel Square Liquid Cooling Pipe
The Stainless Steel Square Liquid Cooling Pipe is a cooling solution specifically designed for data centers, supercomputing centers, new energy storage systems, and high-end industrial equipment. It is made of high-quality 304/316L seamless stainless steel tubing, which is manufactured through precise processes such as cold drawing, annealing, pickling, and passivation. It features excellent corrosion resistance, high strength, and good heat conduction performance, ensuring the long-term stable operation of the cooling system.
Product Introduction
Product features
1. Outstanding corrosion resistance
A dense chromium oxide passivation film is formed on the surface, effectively blocking corrosive media such as chloride ions, acidic organic substances, and hydrofluoric acid. It is suitable for complex cooling medium environments such as fluorinated liquids and ethylene glycol water solutions.
It passed the 240-hour neutral salt spray test without rusting, meeting the ASTM A269 standard, ensuring long-term reliability.
2. High strength and toughness
It can withstand a working pressure of 1.6 MPa and equipment vibration, avoiding the risks of deformation or rupture.
It can adapt to extreme environmental temperatures ranging from -45°C to 60°C, meeting the diverse needs of data centers, outdoor energy storage equipment, etc.
3. Low flow resistance and efficient heat dissipation
The inner wall is smooth (roughness ≤ 0.8 μm), reducing the flow resistance of the cooling fluid and improving the heat exchange efficiency.
The thermal conductivity is high (16.3 W/m·K at 100°C), quickly conducting heat and ensuring stable equipment temperature.
4. Precision manufacturing and cleanliness
It adopts laser cutting, CNC bending, and fully automatic argon arc welding processes, with a weld seam qualification rate of ≥ 99%, and no risk of micro-pore leakage.
It has undergone ultrasonic cleaning, acid washing passivation, and ultra-high pressure flushing, with particle size ≤ NAS 8 grade, avoiding cooling fluid contamination.
5. Customized design
It supports customization of pipe diameter (3 - 50 mm), wall thickness (0.5 - 3 mm), and length, suitable for complex pipe layout.
It provides diversified interface solutions such as quick joints and flange connections, simplifying the installation and maintenance process.
Application
Data center liquid cooling system
The secondary piping for server cabinets, optical modules and CDU (cooling distribution unit), solving the problem of high-density computing heat dissipation.
New energy energy storage system
Applied to battery thermal management and cooling of energy storage cabinets, maintaining the temperature balance of the battery pack and extending the cycle life.
Suitable for wind energy and photovoltaic energy storage equipment, balancing the grid load and improving system efficiency.
High-end industrial equipment
Used for cooling in semiconductor manufacturing, medical equipment and industrial precision instruments, able to withstand high temperatures, high pressures and corrosive media.
Replacing copper tubes or plastic tubes, reducing maintenance costs and improving equipment operational stability.
Rail transit and solar power generation
Connecting cooling towers, refrigeration rooms and other equipment, able to withstand outdoor environmental erosion, ensuring the stable operation of rail transit.
As a key component of solar collectors and heat exchangers, it can withstand high temperatures and high pressure environments, improving power generation efficiency.
Specification
|
Item |
Specification |
|
Product Name |
Stainless Steel Square Liquid Cooling Pipe |
|
Material Grade |
SUS304 / SUS304L / SUS316 / SUS316L |
|
Shape |
Square / Rectangular |
|
Outer Size Range |
10×10 mm to 100×100 mm |
|
Wall Thickness |
0.5 mm – 5.0 mm |
|
Length |
500 mm – 6000 mm / Custom Length |
|
Surface Finish |
Pickled, Polished, Brushed, Matte |
|
Manufacturing Process |
Cold Drawn / Welded / Seamless (Optional) |
|
Connection Type |
Welded End, Threaded End, Flange, Quick Connector |
|
Working Medium |
Water, Glycol Coolant, Industrial Cooling Fluid |
|
Working Pressure |
Customized According to Size and Thickness |
|
Temperature Range |
-40°C to 200°C |
|
Corrosion Resistance |
Excellent |
|
Tolerance |
According to ASTM / DIN / JIS Standards |
|
Leak Test |
Air Pressure Test / Water Pressure Test / Helium Test |
|
Bending Service |
Available |
|
Custom Fabrication |
OEM / ODM Supported |
|
Application |
Data Centers, AI Servers, Battery Cooling, Energy Storage, Industrial Equipment |
|
Packaging |
Plastic Film + Wooden Case / Export Standard Package |
Customized service
1. Full-chain solution
Offer a one-stop service covering selection, design modeling, installation guidance, and supports customized prefabricated ring network pipelines, shortening the on-site construction period.
2. Strict quality control
Follow the GB/T 1804-m level tolerance standard, pass 1.5 times pressure resistance test, air tightness test and 72-hour continuous operation verification, ensuring zero-defect delivery of the products.
3. Rapid response and delivery
Relying on automated production lines and a 10,000㎡ production base, achieve flexible switching from small-batch trial production to large-scale mass production, meeting urgent order requirements.
4. Technical certification and support
The products have passed the high-tech enterprise certification and measurement management system certification, providing ISO 7-level clean workshop production records and material inspection reports, helping customers pass industry certifications.
Contact us immediately to obtain customized liquid cooling pipeline solutions, enhancing the heat dissipation efficiency and reliability of your equipment!
FAQ
1. What is a Stainless Steel Square Liquid Cooling Pipe used for?
It is used to transport coolant in liquid cooling systems for AI servers, data centers, battery packs, industrial machinery, power electronics, and energy storage equipment.
2. Why choose a square liquid cooling pipe instead of a round pipe?
Square pipes make better use of limited installation space, allow cleaner routing inside cabinets or racks, and can provide a more organized piping layout.
3. What materials are available for this product?
Common materials include SUS304, SUS304L, SUS316, and SUS316L stainless steel. 316L is recommended for stronger corrosion resistance.
4. Is 316L stainless steel better than 304 for liquid cooling systems?
Yes. 316L offers better resistance to chloride corrosion, chemicals, and humid environments, making it ideal for demanding cooling applications.
5. Can the size of the square liquid cooling pipe be customized?
Yes. Outer dimensions, wall thickness, length, bending angle, connection ends, and surface finish can all be customized according to drawings or requirements.
6. What coolant liquids can be used inside the pipe?
It is commonly used with pure water, deionized water, glycol mixtures, and standard industrial cooling fluids.
7. Does the pipe support high-pressure cooling systems?
Yes. Stainless steel square cooling pipes are suitable for medium to high-pressure systems depending on wall thickness, size, and connection method.
8. Are leak tests performed before shipment?
Yes. Manufacturers usually provide air pressure tests, water pressure tests, or helium leak detection to ensure sealing performance.
9. What surface finishes are available?
Typical finishes include pickled, polished, brushed, matte, and custom industrial finishes depending on application requirements.
10. Can this product be used for AI data center liquid cooling?
Yes. Stainless steel square liquid cooling pipes are widely used in CDU systems, rack manifolds, cold plate cooling loops, and high-density AI server cooling systems.
