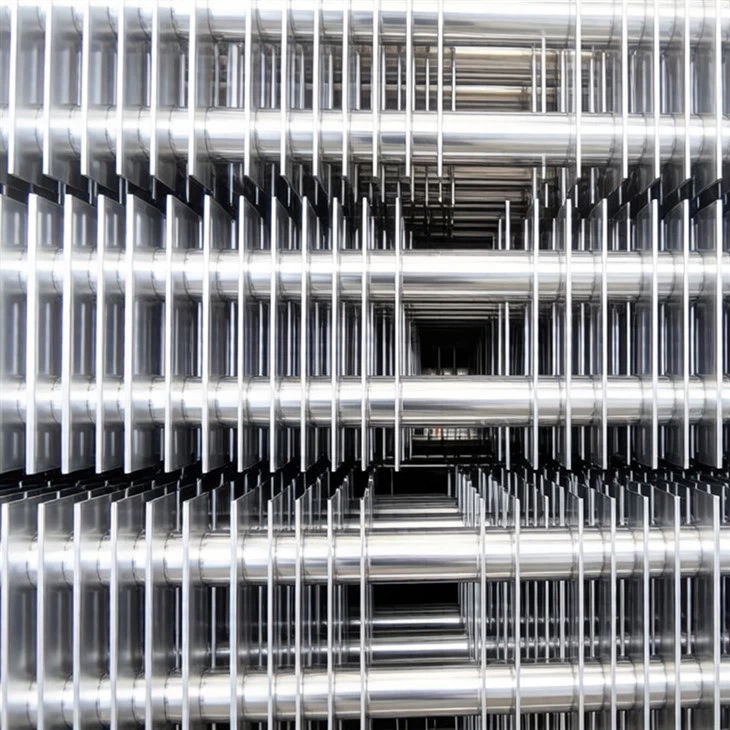

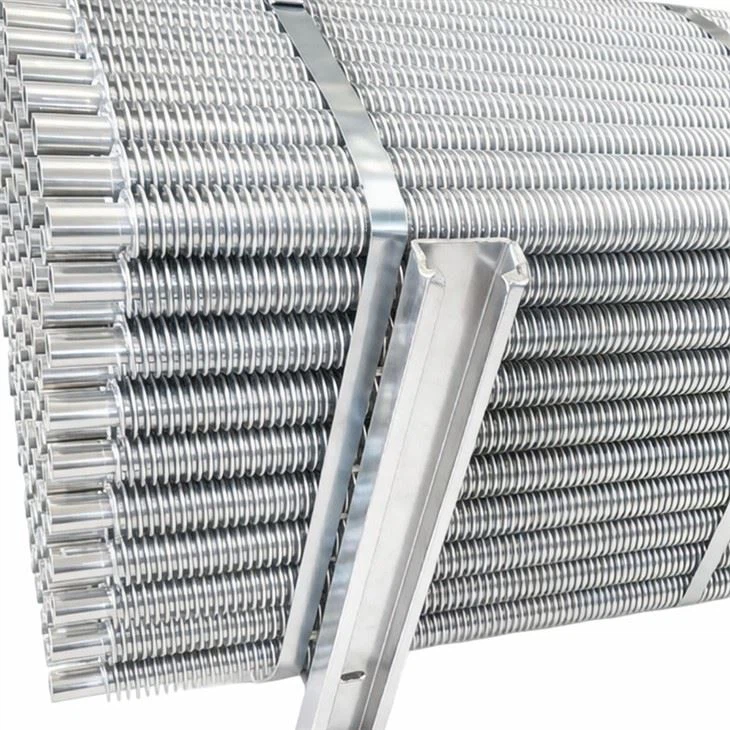

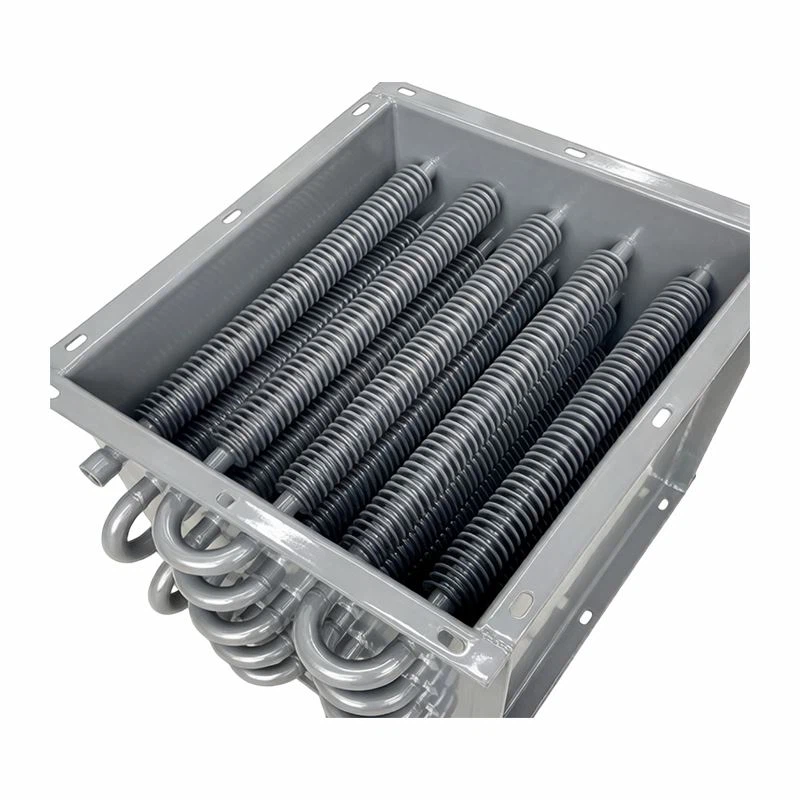

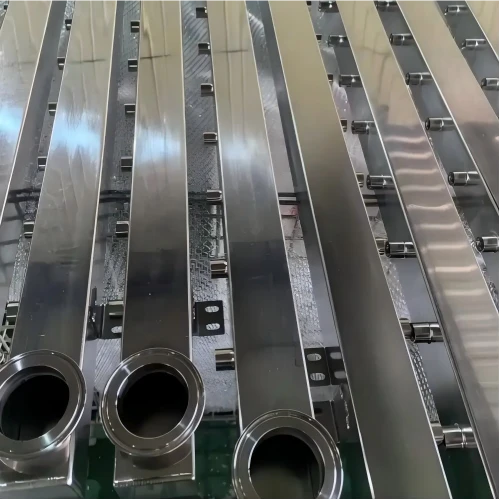

HF Welded Fin Liquid Cooling Tube Built-in Server Racks
video
HF Welded Fin Liquid Cooling Tube Built-in Server Racks

HF Welded Fin Liquid Cooling Tube Built-in Server Racks

The server rack HF Welded Fin Tube, a specialized HF Welded Fin Liquid Cooling Tube, is a cooling solution for server racks and high-density computing enclosures. It is made using high-frequency welding technology, which bonds the fin structure to the base tube. This makes it very good at getting rid of heat with no risk of the fin coming off. The tube is made from 304 and 316L steel, which gives it great resistance to corrosion, high mechanical strength and a long service life. This makes it the best choice for liquid cooling systems in data centers, HPC clusters and energy storage systems.

Send Inquiry

Product Introduction

Product Specifications



Material

304 / 316L Stainless Steel

Outer Diameter

6 mm to 50 mm (we can make custom sizes)

Wall Thickness

0.3 mm to 5.0 mm (standard's 1.5 mm to 3.0 mm)

Fin Type

HF Welded Spiral / Longitudinal Fin

Fin Height

We can make it to your specifications ( 5 mm to 15 mm)

Fin Pitch

We can make it to your specifications based on heat transfer needs

Standard Length

0.5 m to 6 m per piece (we can cut it to your size)

Working Pressure

Up to 200 kgf/cm² (depending on wall thickness)

Operating Temperature

-200°C to +600°C (for 316L grade)

Connection Type

Welded / press / Flanged

Surface Treatment

Acid-pickled, Polished Sandblasted (if you want)

Standards Compliance

ASME B31.3 Pressure Piping and other quality system standards

Tube Shape

Round / Square / Rectangular (depending on the application)



Product Advantages



The HF Welded Fin Liquid Cooling Tube has advantages.

  • High-Frequency Welding makes the fin stick to the base tube well.
  • This makes the tube very strong and able to handle demanding conditions.
  • The fin on the tube helps to increase the surface area, which makes heat transfer better.
  • This makes the tube very good at cooling.
  • The tube is also very resistant to corrosion, which makes it last longer.
  • We can make the tube to your specifications, which makes it easy to install.



Custom Procurement Advisory



Before you order please make sure you know what you need.

  • You need to know what you will use the tube for.
  • You need to know what size and thickness you need.
  • You need to know what kind of coolant you will use.
  • You need to know what length and shape you need.
  • You need to know what kind of surface finish you want.

We can help you with all of this.



Application Fields

Data Centers & HPC

The HF Welded Fin Tube is great for cooling servers and keeping them running.

Energy Storage Systems

The tube helps to keep batteries at the temperature, which makes them last longer.

Semiconductor & Precision Equipment

The tube helps to keep equipment at the temperature, which makes it work better.

Commercial Refrigeration

The tube is great for cooling and refrigeration systems.



FAQ



Q: What is the difference between HF welded fin tubes and wound fin tubes?

A: Our server rack HF Welded Fin Tube is better because its fins are firmly bonded to the base tube using high-frequency welding, while wound fin tubes can come loose over time.

Q: Can I use both 304 and 316L steel in the same cooling loop?

A: Yes, you can. You need to be careful about potential corrosion risks, and it is better to use 316L in high-corrosion environments.

Q: What is the maximum working pressure for the tube?

A: It depends on the thickness and size of the tube, and we can help you figure out the exact value for your application.

Q: Can I get a custom size for my tube?

A: Yes, we can make it to your specifications. You just need to let us know what you need.

Q: What certifications and quality standards do you follow?

A: We follow ASME B31.3 and other quality system standards, and we can also provide relevant certifications if you need them.
