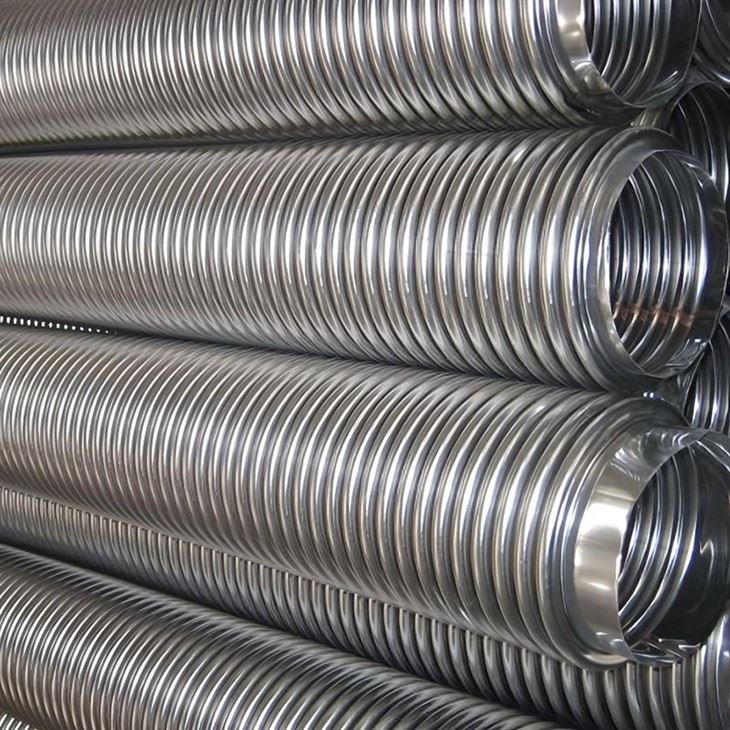

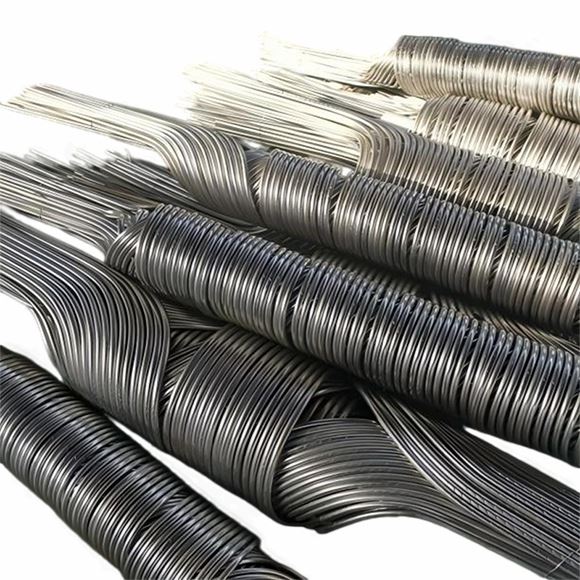

Stainless Steel Corrugated Condenser Tube for Water-Cooled Data Centers

Stainless steel condenser tubes are commonly used in condensers, evaporators, and heat exchangers in refrigeration systems. The corrugated tube design increases the effective heat transfer area and improves condensation efficiency, helping cooling equipment remain stable during long-term operation.

These tubes are suitable for industrial chillers, circulation cooling units, and other systems that require reliable and continuous heat exchange performance.

In chemical processing equipment, cooling pipes must operate under high temperature, high pressure, and corrosive working conditions. Stainless steel condenser tubes provide strong corrosion resistance together with stable mechanical strength, making them suitable for reactors, condensers, and various chemical heat exchangers.

The tubes can also be customized according to different media types, pressure ratings, and installation requirements.

Food processing lines require cooling components that are clean, safe, and resistant to corrosion. These tubes are suitable for condensation, cooling, and heat exchange systems where stable temperature control is necessary during continuous production.

For applications with strict hygiene standards, the tubes can be manufactured with smooth surface finishing and food-grade stainless steel materials to meet equipment safety requirements.

Pharmaceutical machinery often requires accurate temperature control and reliable long-term operation. The tubes can be used in condensers, liquid circulation systems, and cooling units to maintain consistent heat transfer efficiency.

They are especially suitable for equipment that needs continuous running with low maintenance and stable structural performance.

Besides specialized equipment, these tubes are widely applied in general industrial cooling devices, power systems, and thermal management units. Different tube diameters, wall thickness, and corrugated structures can be customized to match various installation spaces, flow capacity, and cooling load conditions.

This makes them suitable for a wide range of water-cooled condenser applications, including data center cooling and other high-efficiency heat exchange systems.

Tube diameter and length should reflect the actual heat load and flow rate of your system. A large industrial chiller moves significantly more refrigerant than a compact unit, so forcing both through the same tube diameter either wastes energy or starves the heat exchanger. As a rough starting point, map your BTU or kW requirement against your target flow velocity before locking in a size.

Water, refrigerant, and process chemicals each attack metal differently. Standard 304 stainless handles clean water and mild environments well. Once chlorides, acids, or aggressive cleaning agents enter the picture, 316 or 316L becomes the practical choice - the added molybdenum content resists pitting that 304 simply cannot. Food, pharmaceutical, and chemical processors in particular should confirm compatibility with their specific fluid before ordering.

Wall thickness is not a cosmetic spec - it determines whether a tube holds up or fails under operating stress. Pull the actual maximum working pressure and peak temperature from your system design documents, then verify the tube's rated capacity against those numbers with a reasonable safety margin. High-pressure or elevated-temperature applications may require heavier wall construction or a custom specification.

Connection method - whether welded, flanged, or threaded - should be decided at the design stage, not on the shop floor. Corrugation pitch and overall tube length also affect how easily the assembly fits into tight equipment enclosures. A few hours spent reviewing the installation drawing upfront typically saves far more time during commissioning.

If standard catalogue dimensions do not fit your equipment, tubes can be produced to a specific drawing covering diameter, wall thickness, alloy grade, corrugation geometry, length, and end connections. This applies across refrigeration, chemical processing, food production, and pharmaceutical manufacturing wherever off-the-shelf dimensions fall short.
