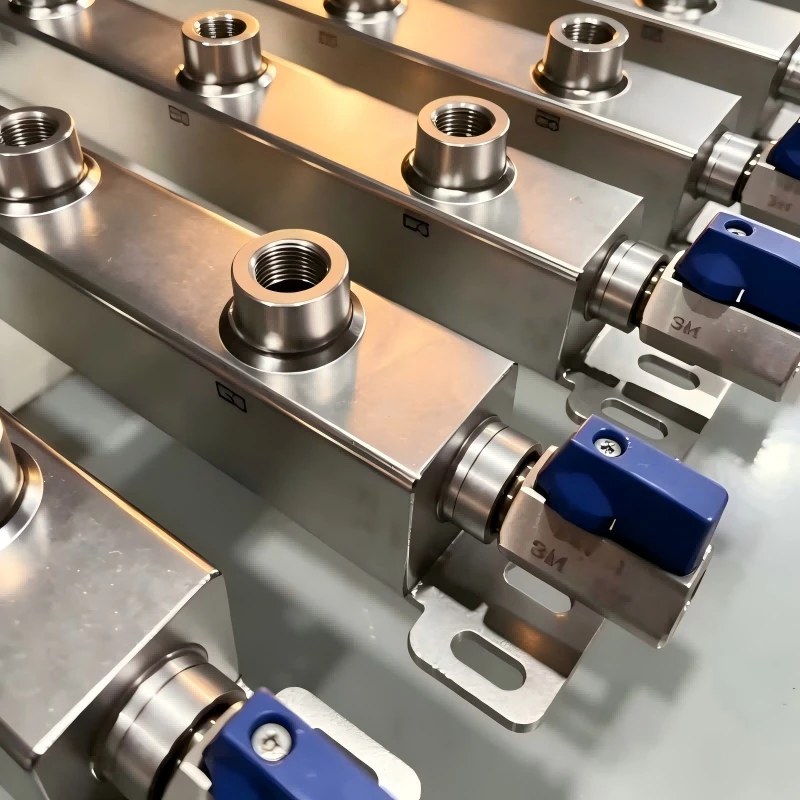

Data Center Liquid Cooling Manifold Pipe
China Super Tech Co., Ltd. manufactures data center liquid cooling manifold pipe as precision-engineered 304/316L stainless steel fluid distribution components for AI server cooling, CDU systems, immersion cooling, and energy storage thermal management. Product specifications include square tube cross-sections from 10×10 mm to 80×80 mm, wall thickness 0.5–3.0 mm, and lengths up to 6000 mm. Core specification: internal surface roughness Ra ≤0.4 μm. Certified under ISO9001, ISO3834, CE, and RoHS.
[Certification logos] | 11+ years · 12,000 tons/year · 20+ countries · 600+ projects
[Get a Quote] — engineering reply within 24 hours
Product Introduction
The Real Failure Points in Liquid Cooling Manifold Delivery
If you are facing any of the following, the problem is not your design - it is how the manifold pipe is manufactured.
- Delayed project launch: Server racks and CDU units are already installed, but the manifold pipe has not arrived. Every day of delay costs projected revenue and violates service-level agreements with your end customer.
- Uncontrolled custom production lead times: When you need special dimensions, custom bends, or specific interface configurations, your supplier cannot commit to a production schedule or delivery node. Your project timeline becomes a guess.
- Batch inconsistency after volume purchases: The first batch meets dimensional tolerances, weld quality, and surface finish. The second batch shows tube diameter deviation, uneven wall thickness, and interface dimension drift. Installation teams cannot match the new batch to existing cooling modules. For AI server liquid cooling in mass production requiring thousands of 316L tubes, this directly reduces assembly efficiency and increases field rework cost.
Differentiation vs. Industry Conventional Manufacturing
| Dimension | This product | Industry conventional | Differential value |
| Manufacturing focus | Dedicated liquid cooling production lines (coolant compatibility, leak prevention, cleanliness) | General stainless steel tube production | Reduces coolant chemistry mismatch and particle contamination risk |
| Process integration | Raw material inspection, forming, welding, surface treatment, machining, inspection, assembly - all in-house | External processing for multiple steps | Eliminates supplier coordination risk; ±0.05 mm dimensional consistency across batches |
| Leakage control | Orbital welding + 100% leak inspection before shipment | Manual welding + sample inspection | Lowers weld defect rate from industry ~2% to ≤0.3% |
| Internal surface finish | Ra ≤0.4 μm (polishing + pickling + passivation) | Ra 0.8–1.6 μm (standard industrial finish) | 50% less particulate accumulation; stable coolant flow over system lifetime |
| Customization range | Square 10×10 to 80×80 mm; wall 0.5–3.0 mm; length to 6000 mm; custom bends, manifolds, assemblies | Standard straight tubes only | Optimized piping layout; fewer joints; reduced installation complexity |
| Supply capacity | 12,000 tons annual production; 600+ projects served | Varies by supplier | 3 parallel orders run without queuing - urgent demand ships in 7 days, not 21 |
Manufacturing Process
-
- Material verification & grade control - each raw batch checked by spectrometer analysis against mill certificates. 316L selected for glycol-based coolants (Mo content resists pitting); 304 for pure/deionized water loops. Standard: ASTM A312.
- High-precision tube forming - CNC-controlled forming holds wall thickness and geometry tolerance. Dimensional measurement at 100% inspection points. Standard: internal QC spec.
- Controlled welding (orbital) - automated orbital welding eliminates operator-dependent weld penetration variation. ISO3834-certified procedure. Parameter: argon shielding at 99.99% purity.
- Internal surface optimization - polishing + pickling + passivation achieves Ra ≤0.4 μm. Standard: ISO 4287.
- Customized forming & assembly - bending, manifold fabrication, and integrated assemblies for space-constrained system designs.
- Multi-stage leak testing - 100% hydrostatic pressure test at 1.5× working pressure before shipment. Weld inspection per ISO 5817.
Core Components
- Raw material: 304/316L stainless steel coils - sourced from certified mills, batch traceable via MTR
- Welding equipment: Orbital welding heads (European) - selected for automated, repeatable weld quality
- Surface treatment line: In-house polishing and passivation line - controls finish without outsourcing variance
Quality Inspection
- Incoming inspection - spectrometer chemical composition on every material batch; certificate review per ASTM A312
- In-process inspection - dimensional measurement (OD, wall, length) at forming stage
- Weld inspection - ISO 5817 visual + 100% leak test at 1.5× working pressure
- Final inspection - surface roughness per ISO 4287; cleanliness check; dimensional re-verification
- Pre-shipment inspection - third-party inspection (SGS/TÜV/BV) available on request
Defect rate: ≤0.3%. Third-party inspection reports available for each batch.
Technical Specifications
| Category | Parameter | Value | Standard |
|---|---|---|---|
| Dimensional | Square Tube Cross-Section | 10 × 10 – 80 × 80 mm | Custom |
| Wall Thickness | 0.5 – 3.0 mm | Custom | |
| Length | Up to 6000 mm | Custom | |
| Chemical | C (Carbon) | ≤ 0.03% (316L) | ASTM A312 |
| Mo (Molybdenum) | 2.0 – 3.0% (316L) | ASTM A312 | |
| Mechanical | Tensile Strength | ≥ 515 MPa | ASTM A312 |
| Yield Strength | ≥ 205 MPa | ASTM A312 | |
| Surface | Internal Roughness | Ra ≤ 0.4 μm | ISO 4287 |
Customization Capability
- Cross-section: Square 10×10 to 80×80 mm; custom rectangles available
- Wall thickness: 0.5–3.0 mm in 0.1 mm increments
- Geometry: Custom bends, manifolds, and complete liquid cooling assemblies
- Material: 304 or 316L based on coolant chemistry and operating temperature
Application Scenarios
| Industry | Typical Application | Recommended Spec | Operating Environment |
| AI data centers | CDU coolant distribution to server racks | 316L square tube, Ra ≤0.4 μm, custom manifolds | 24/7 operation; glycol-water coolant at 30–50°C |
| Server liquid cooling | Cold plate connection lines within racks | 304/316L, thin wall (0.5–1.0 mm) | Confined space; frequent connection cycles |
| Immersion cooling | Coolant circulation manifolds in tanks | 316L, leak-tested assemblies | Dielectric fluid; long-term submersion |
| Energy storage | Thermal management piping in battery systems | 316L, corrosion-resistant finish | Wide temperature swings; humidity |
Customer Cases
- AI data center · North America · 3,000+ pcs (manifold assemblies) · 12 months · Result: 0 field leak reports; batch dimensional deviation below ±0.05 mm across 6 production runs
- CDU system integrator · Europe · 800 bent tubes · 6 months · Result: internal roughness held at Ra 0.35 μm average; coolant particle counts stable over 8-month monitoring
- Energy storage OEM · Asia · 1,500 manifolds · 18 months · Result: 99.7% first-pass installation rate; rework cost reduced by 60% vs. previous supplier
Customer Voice
Customer quote: "The biggest concern is not the sample quality, but whether every batch can maintain the same standard."
Customer quote: "The cheapest supplier is not always the most cost-effective choice. We care more about total project cost."
FAQ
What material grade should I choose - 304 or 316L?
+
-
Choose 316L when the coolant contains chloride ions or glycol-based mixtures, because the molybdenum content (2.0–3.0%) resists pitting corrosion. For pure water or deionized water loops, 304 delivers cost-effective performance. If uncertain, provide your coolant chemistry and operating temperature - our engineers confirm the grade within one working day. This selection directly determines the 20-year reliability of your cooling system.
What is the minimum order quantity for customized manifold pipe?
+
-
MOQ is 500 kg for standard dimensions and 200 kg for fully custom cross-sections or assemblies. Custom bend tooling is free for orders above 1,000 pcs. For prototype validation, we accept sample orders from 10 pcs with a 7–10 day production cycle. Volume orders - 5,000+ pcs - receive priority production scheduling.
How do you guarantee batch-to-batch dimensional consistency?
+
-
Consistency is enforced at three levels: (1) raw material from the same certified mill with MTR verification; (2) CNC-controlled forming and orbital welding that eliminate operator-dependent variation; (3) 100% dimensional inspection before shipment, not sample inspection. Our data shows dimensional deviation of ±0.05 mm across consecutive batches.
What is your standard lead time for manifold pipe orders?
+
-
Standard lead time is 15–20 days, expedited is 7–10 days, and custom assemblies with new tooling take 25–30 days from drawing approval. We hold 12,000 tons of annual capacity, so three parallel orders run without queuing. For a 200-pc sample order, we ship within 7 days. Urgent projects receive a dedicated production slot.
Do you provide after-sales technical support for installation?
+
-
Yes. Our engineers provide installation guidance via video call within 24 hours of your request. We also support on-site troubleshooting for system integration issues. Warranty covers 24 months from shipment date, including weld integrity, dimensional stability, and surface finish. Any defect is replaced free of charge, or we issue a credit note.
After-Sales Service
- Warranty: 24 months from shipment date, covering weld integrity, dimensional stability, and surface finish
- Technical response: within 24 hours (engineering video call)
- On-site support: available for system integration troubleshooting
- Support channels: WhatsApp / Email / Online chat / Phone
Logistics & Delivery
- Annual capacity: 12,000 tons - enough manifolds to serve 3 flagship AI server farms in parallel
- Standard lead time: 15–20 days
- Expedited lead time: 7–10 days
- Packaging: export-grade wooden crates + anti-corrosion wrapping + end caps
- Sample policy: samples available in 7 days; cost credited to mass production order
Request a Quote
Required information:
- Company name
- Product requirements (spec, quantity, application)
Contact channels:
- RFQ quick form (below)
- WhatsApp instant contact ([+86]-linked button)
- Technical consultation booking (engineer call)
- Resource download center (STEP files, PDF spec sheets, sample MTR)
- Sample request (7-day delivery)
Response commitment: A manufacturer engineer replies within 24 hours.
Current production slots for Q3 are being allocated. Submit your requirements now to secure a July–August delivery window.
